NEXT 09 ET

Color:

Transparent with TPU-coated INOX steel spiral

Diameter range:

30-203,2

Features:

Ether based TPU hose, reinforced with a TPU-coated AISI 302 INOX steel spiral, to offer the best adhesion with the hose wall.

Completely smooth inside to ensure optimization of flow properties. Constant wall thickness of 0,9 mm for the whole diameter range. It is is made by a special TPU that combines different properties which make the wall material permanent antistatic (R<10⁹ Ohm). Resistant to microbes and Hydrolysis, as well as to UV rays. Strong but very light and flexible even at low temperatures, it is suitable for heavy duty applications where a very good abrasion resistance is required. Good resistance to mineral oils and chemicals, excellent resistance to ozone and weathering. It is neutral in taste and odor, preserving the organoleptic properties of the media conveyed.

Foodgrade,  in accordance with FDA Regulations (title 21 CFR 177.2600) and EU 10/2011 (classes A, B, C, D1, D2, E).

The hose can be conductive (R<10² Ohm/m) by grounding the spiral.

Application:

Suction of abrasive media in the food and pharmaceutical industries. Used in chemical industry and for all those applications where a special microbes resistance is required. Mainly used in plastic industry for the suction of granulates for products intended to come into contact with foodstuff. Installed on street cleaning vehicles.

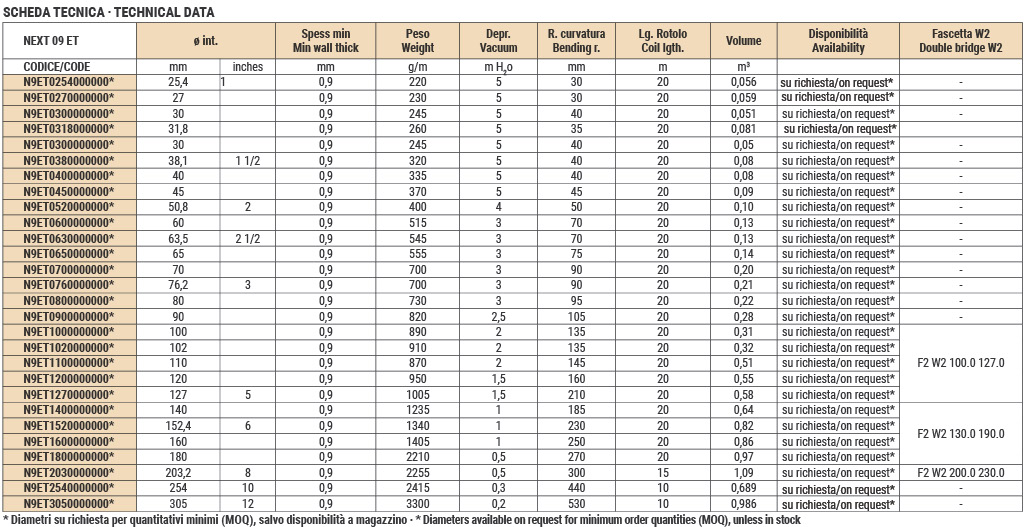

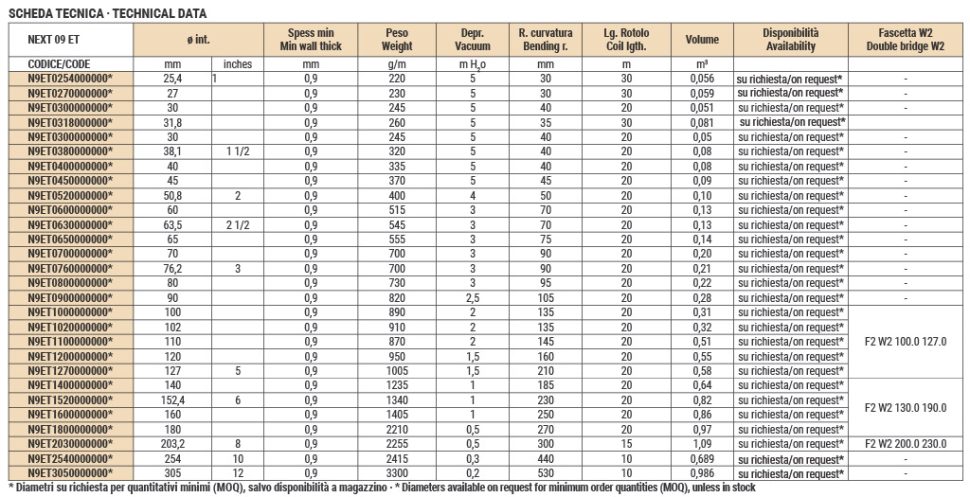

TECHNICAL SHEET PDF
