NEXT 07

Color:

Translucent

Diameter range:

50,8-203

Features:

Ester based TPU duct reinforced with a TPU high adhesion coated copper colored steel spiral.

Totally smooth inside to ensure optimization of flow properties. Constant wall thickness of 0,7 mm through all the diameter range

Strong but light and flexible, it’s suitable to heavy duty applications, where a very good abrasion resistance is required.

In fact its capability of abrasion resistance is 20 mm³, 50% more than that of a conventional TPU hose.

Resistant to mineral oils, ageing, UV rays, atmospheric agents, ozone and to most chemicals.

NEXT 07 is made by a special TPU that combines different properties which make the wall material permanent antistatic (R<10⁹ Ohm/m) and resistant to UV rays. Thanks to the excellent quality of compound used, the hose is more resistant to Hydrolysis than a conventional Ester-based TPU hose.

It can be made conductive (10² Ohm/m) by grounding the spiral.

Application:

Suction of granules, abrasive powders, pellets, sawdust, fumes and abrasive powders even in critical condition. Suitable to be used in plastic, woodworking, ceramic, dust extraction industries

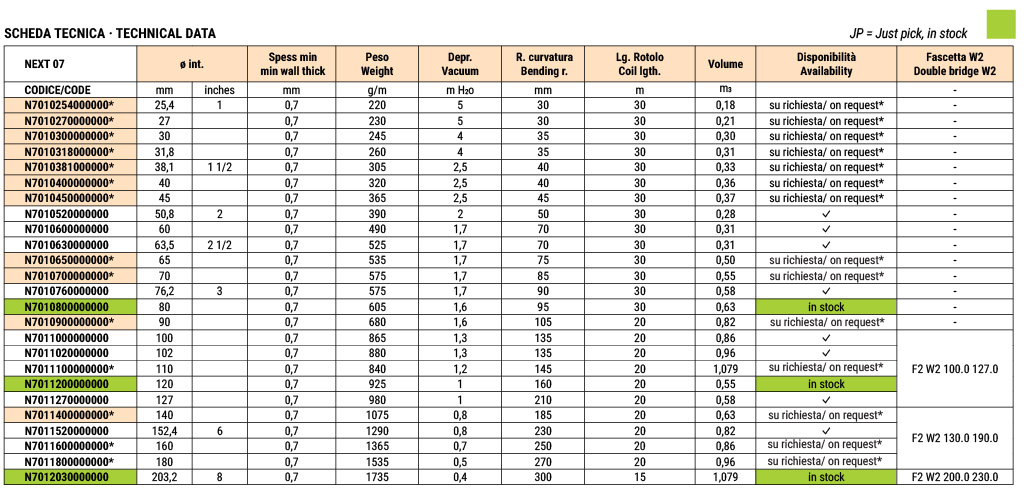

TECHNICAL SHEET PDF
