IPL CRYSTAL CLEAR-55
Pharma hoses
Color:
translucent
Diameter range:
3,2x6,4-12,7x19,1
Features:
Hygienic TPE-S pharma-grade tubing for peristaltic pumps specifically engineered for applications within food, pharmaceutical, biotech and cosmetic industries.
The extruded, low porosity TPE tube reduces permeation problems. Highly neutral in taste and odor, it preserves the organoleptic properties of the medium. Good chemical resistance to acids and alkaline solutions and good impermeability. Versatile rubber resistant also to alcools with max. 50% concentration. Much more impermeable than silicone elastomers.
Superior working life on peristaltic pumps when compared with similar tubings of the competition (average working life >190 hours when tested on a 3 lobes pump with 600 turning/minute) and minimal spallation on pump heads.
Standards:
ISO 10993-5 (Non cytotoxic)
ISO10993-4 (Non haemolytic, direct and indirect methods)
USP <88> CLASS VI
USP <661> Physicochemical Tests-plastics
EU n° 10/2011 (classes A, B, C, D1)
FDA Reg.(Title 21 CFR 177.2600 classes D, E)
Curing-free material: IPL Crystal-Clear 55 does not need any vulcanization process, therefore it prevents the risk of leaching of curing agent residues into the end product (peroxide or platinum volatile rests) and allows to save energy sources and limit CO2 emissions.
Application:
ideal solution for peristaltic pumps working in the pharmaceutical, cosmetic and food sectors. Typical applications: dosing of pharmaceutical fluids, sterile filling and dispensing systems, cell culture media, synthetic processes, purification and separation processes, laboratory applications, dosing od soaps, cremes, detergents. Dosing of juices, alcohols, sauces, viscous fluids (syrups), waters and purified waters. For milk and low fat products. For dispensers of beverages. Heat sealable and quick welding of multiple lengths, which can be assembled without the need of connectors. This ensures the stability of the flow. See recommendations for technical suitability.

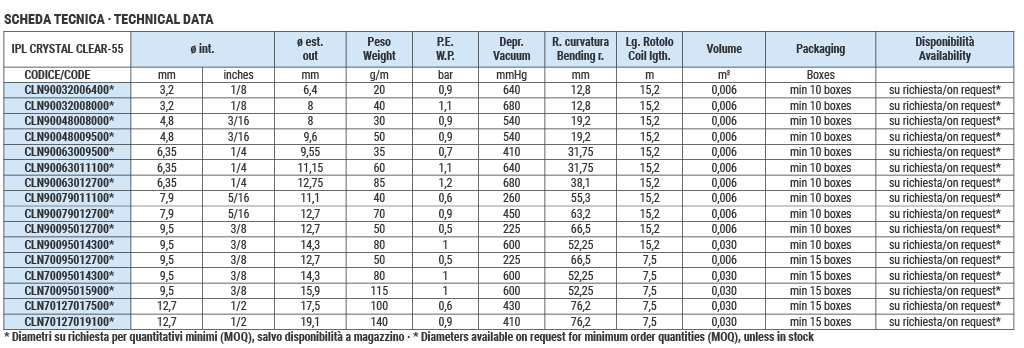

TECHNICAL SHEET PDF
